2012 Oxleaze Copse formation
|
Reconstruction of the 2012 Oxleaze Copse formation | ||
| 1. |

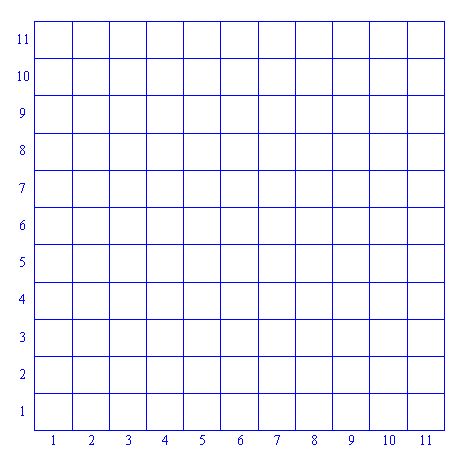

| Draw an eleven by eleven grid of connected squares. Number the columns from left to right, and the rows from bottom to top 1 to 11. |
| 2. |

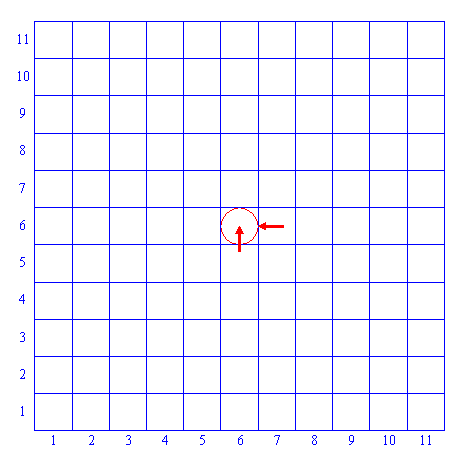

| Construct the inscribed circle of square (6,6) - column 6, row 6. |
| 3. |

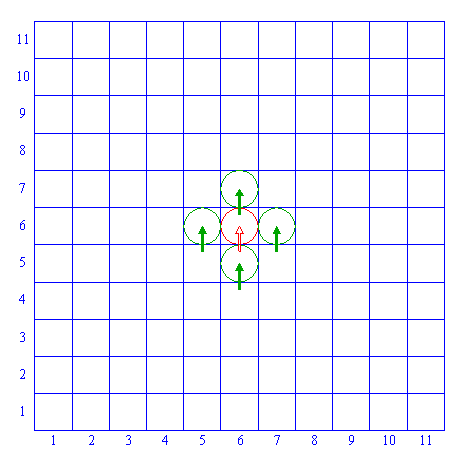

| Copy circle 2 four times, to the centers of the horizontally and vertically adjacent squares ((5,6), (7,6), (6,5), (6,7)). |
| 4. |

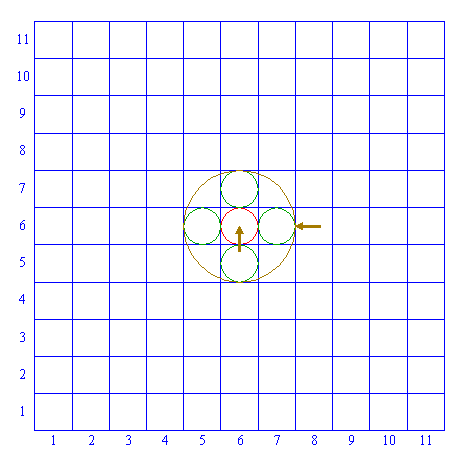

| Construct the circumscribed circle of circles 3. |
| 5. |

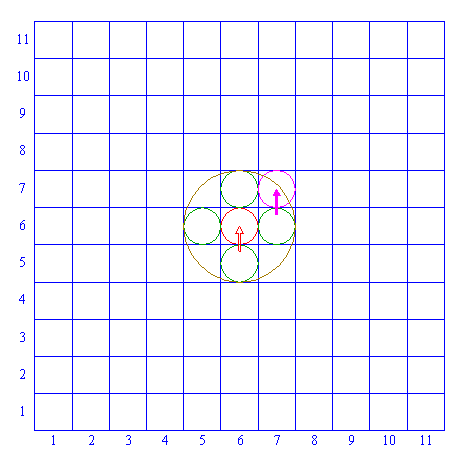

| Copy circle 2 to the center of square (7,7). |
| 6. |

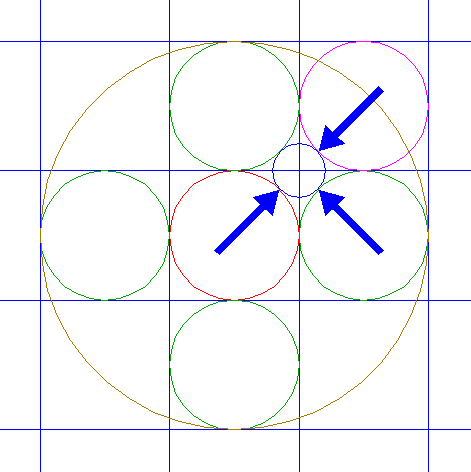

| Construct a circle, tangent to circles 2 and 5 and righthand circle 3 at the near sides. |
| 7. |

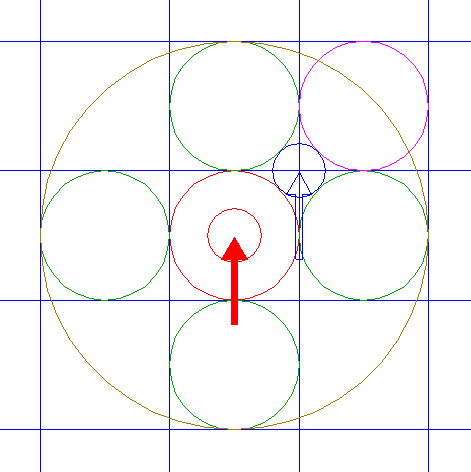

| Copy circle 6 to the center of circle 2. |
| 8. |

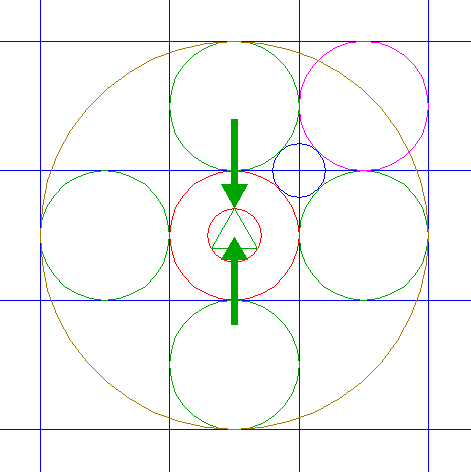

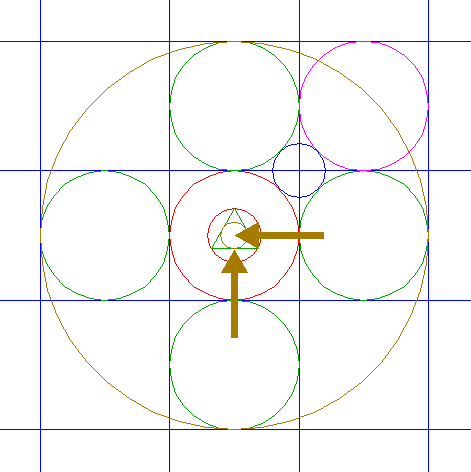

| Construct the inscribed equilateral triangle of circle 7, pointing up. |
| 9. |
| Construct the inscribed circle of triangle 8. |
| 10. |

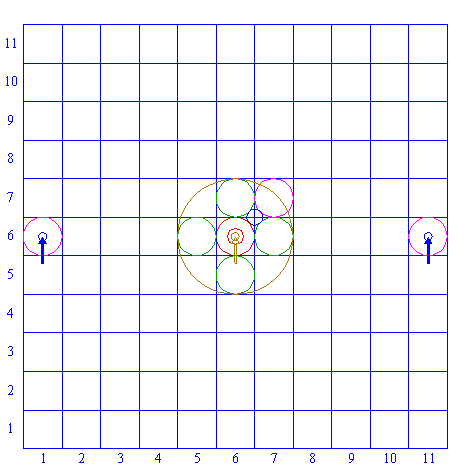

| Copy circle 2 two times, to the centers of squares (1,6) and (11,6). |
| 11. |

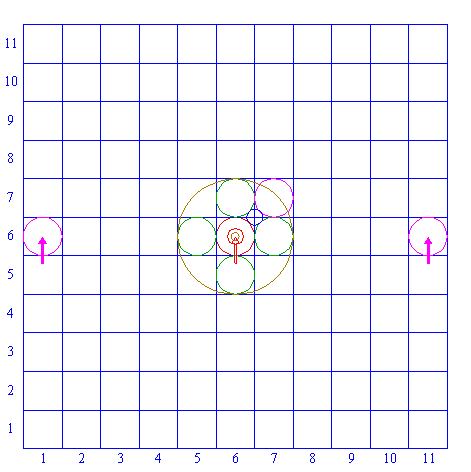

| Copy circle 9 two times, to the centers of circles 10. |
| 12. |

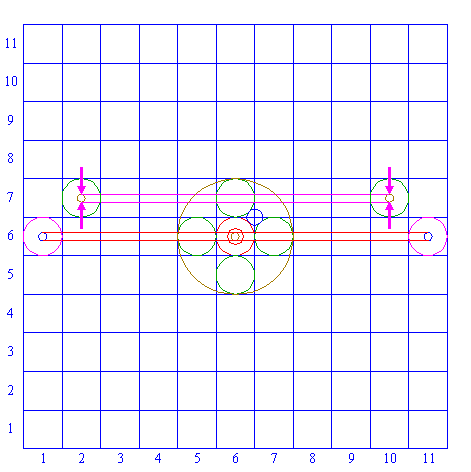

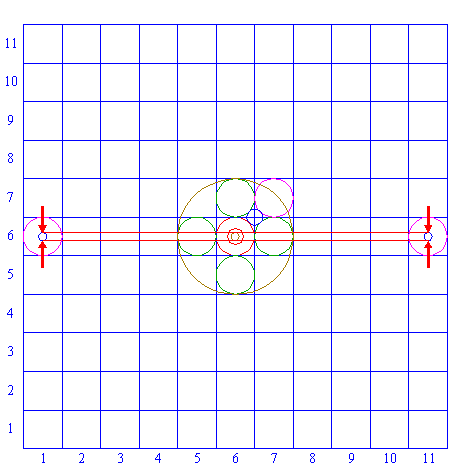

| Draw two parallel lines, tangent to circles 11 at both sides. |
| 13. |

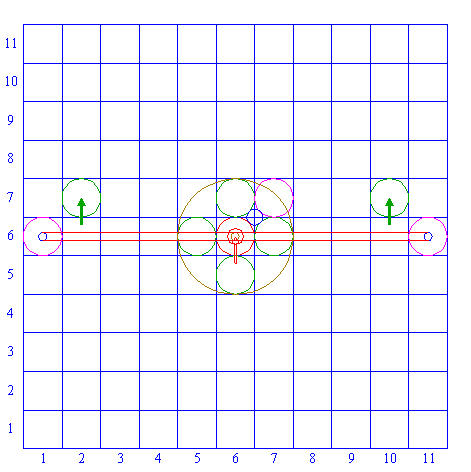

| Copy circle 2 two times, to the centers of squares (2,7) and (10,7). |
| 14. |
| Copy circle 9 two times, to the centers of circles 13. |
| 15. |
| Draw two parallel lines, tangent to circles 14 at both sides. |
| 16. |

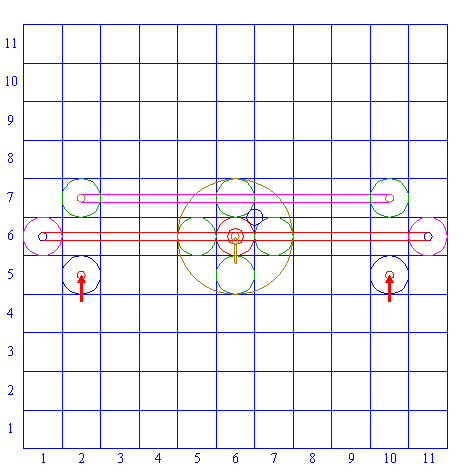

| Copy circle 2 two times, to the centers of squares (2,5) and (10,5). |
| 17. |
| Copy circle 9 two times, to the centers of circles 16. |
| 18. |
| Draw two parallel lines, tangent to circles 17 at both sides. |
| 19. |

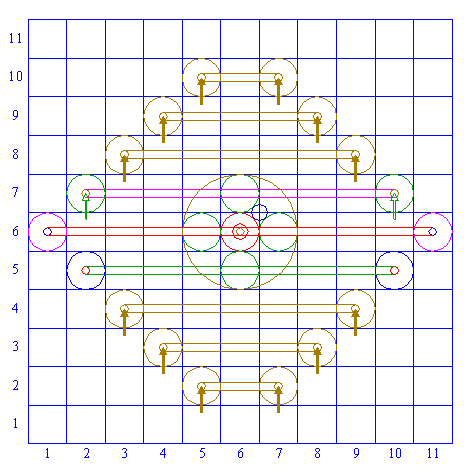

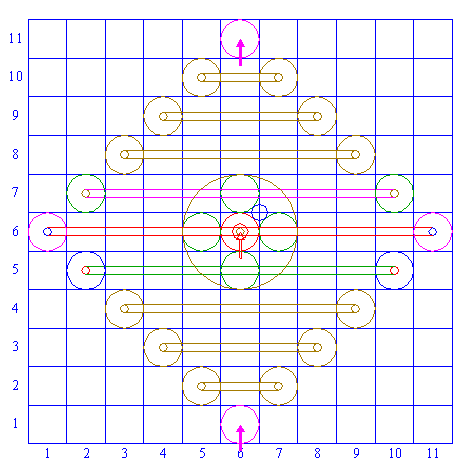

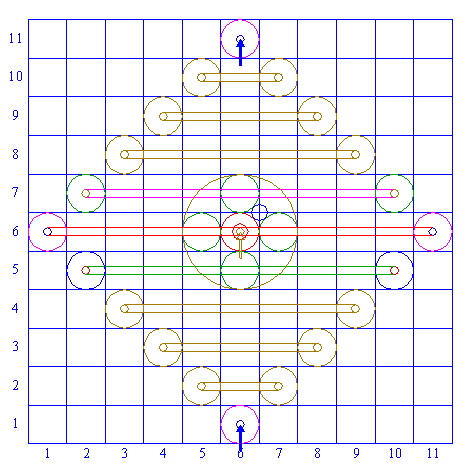

| Repeat steps 10, 11 and 12 another six times, for respectively squares (3,8) and (9,8), (4,9) and (8,9), (5,10) and (7,10), (3,4) and (9,4), (4,3) and (8,3), (5,2) and (7,2). |
| 20. |
| Copy circle 2 two times, to the centers of squares (6,1) and (6,11). |
| 21. |
| Copy circle 9 two times, to the centers of circles 20. |
| 22. |

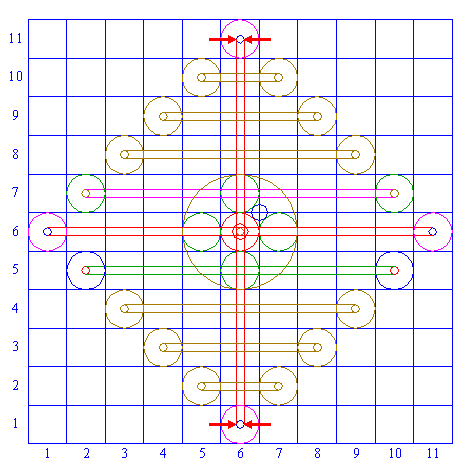

| Draw two parallel lines, tangent to circles 21 at both sides. |
| 23. |

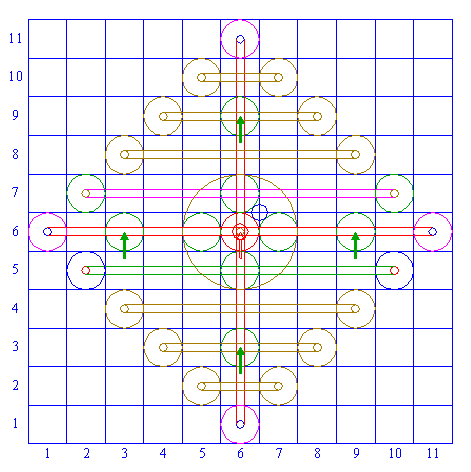

| Copy circle 2 four times, to the centers of squares (3,6), (6,3), (6,9) and (9,6). |
| 24. |
| Copy circle 6 two times, to the centers of the upper and lower circles 23. |
| 25. |
| Draw two parallel lines, tangent to circles 24 at both sides. |
| 26. |

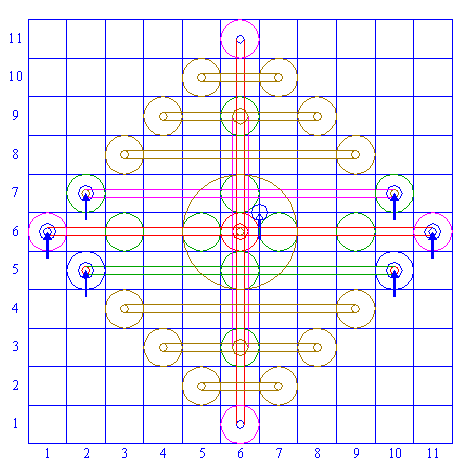

| Copy circle 6 six times, to the centers of circles 10, 13 and 16. |
| 27. |

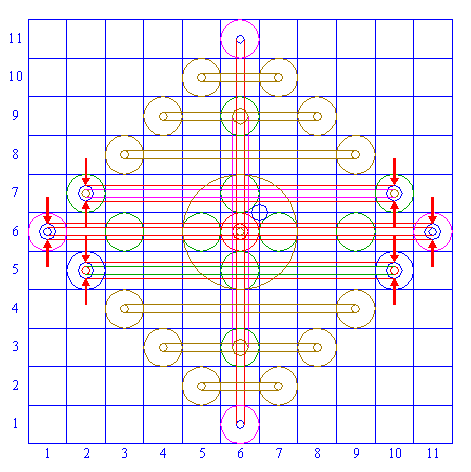

| Draw three sets of two parallel, horizontal lines, tangent to corresponding pairs of circles 26 at both sides, as shown. |
| 28. |

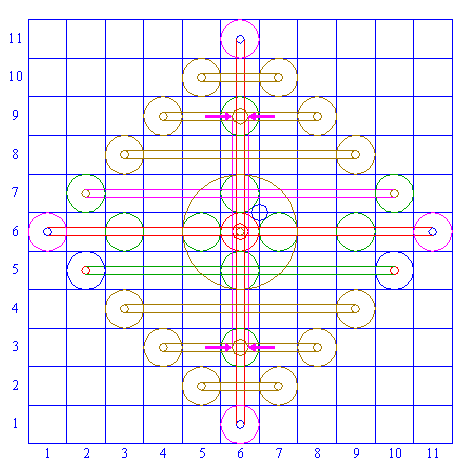

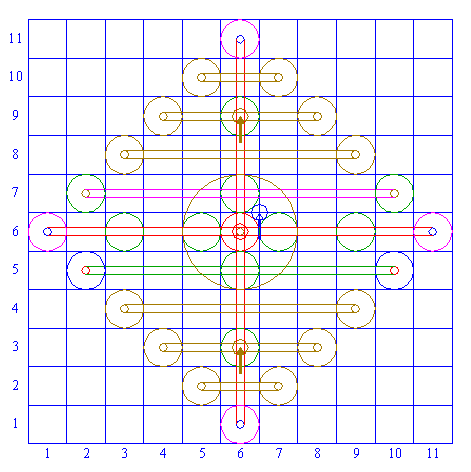

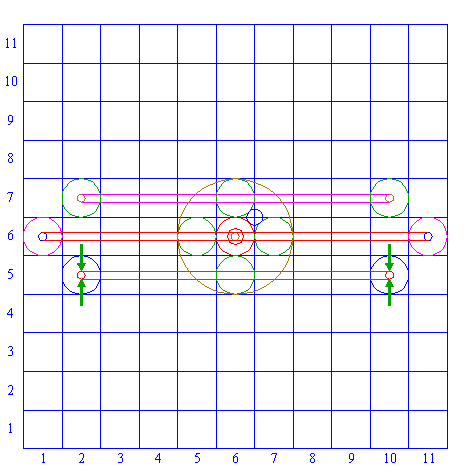

| Circles 4, 10, 13, 16, 19, 20 and 23, and lines 12, 15, 18, 19, 22, 25 and 27, are used for the final reconstruction. |
| 29. |

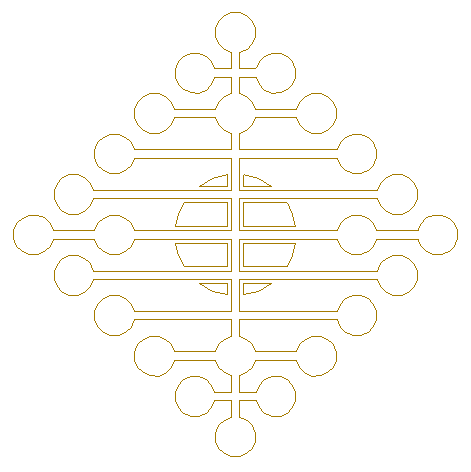

| Remove all parts not visible within the formation itself. |
| 30. |
| Colour all areas corresponding to standing... |
| 31. |

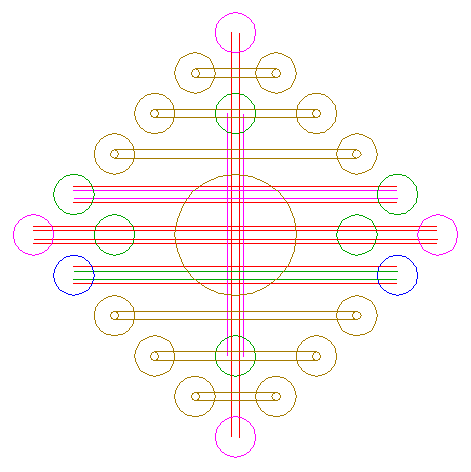

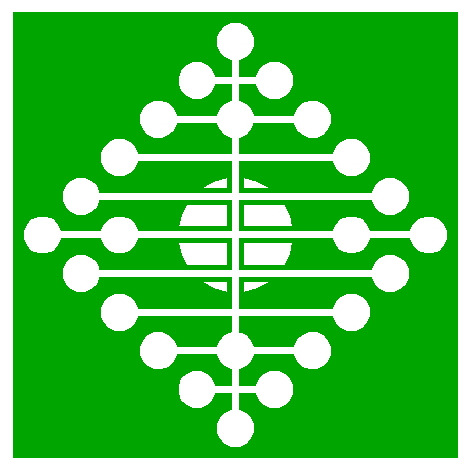

| ...or to flattened crop, and finish the reconstruction of the 2012 Oxleaze Copse formation. |
| 32. |
| The final result, matched with two aerial images. |
