2003 Tegdown Hill formation
|
Reconstruction of the 2003 Tegdown Hill formation | ||
| 1. |

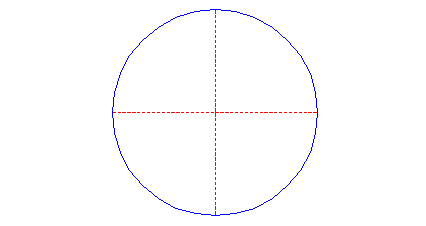

| Draw a circle. Draw the horizontal and vertical centerlines. |
| 2. |

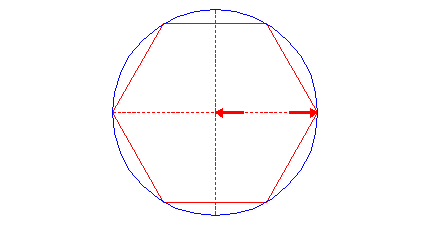

| Construct the inscribed hexagon (regular 6-sided polygon) of circle 1, pointing to the right. |
| 3. |

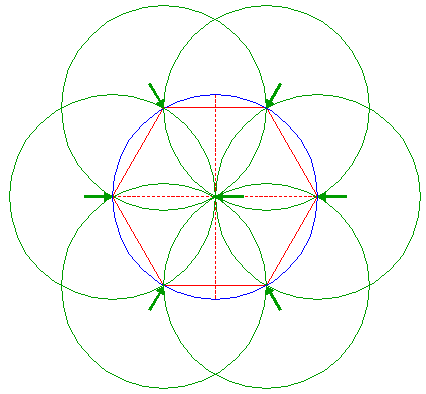

| Copy circle 1 six times, to the angular points of hexagon 2, creating a flower-of-life pattern. |
| 4. |

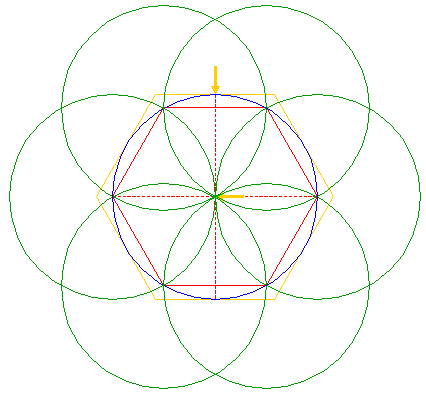

| Construct the circumscribed hexagon of circle 1, pointing to the right. |
| 5. |

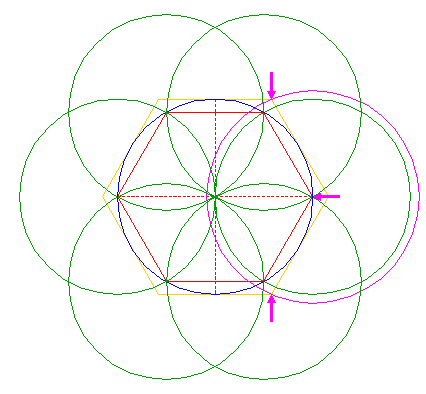

| Construct a circle concentric to the rightmost circle 3, passing through the upper right and lower right angular points of hexagon 4. |
| 6. |

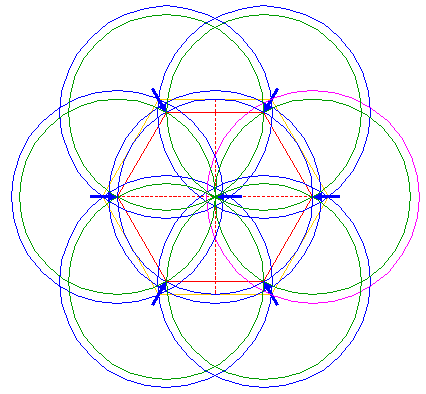

| Copy circle 5 six times, one to the center of circle 1, and five to the centers of the remaining circles 3. |
| 7. |

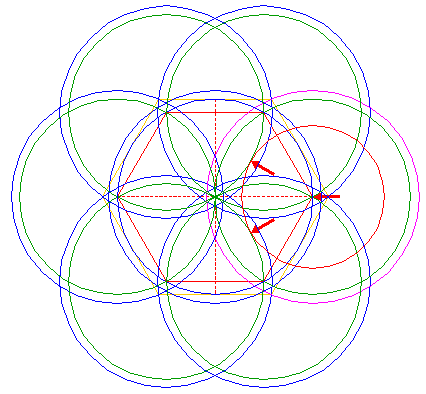

| Construct a circle concentric to the rightmost circle 3, tangent to the upper left and lower left circles 3, at the near sides. |
| 8. |

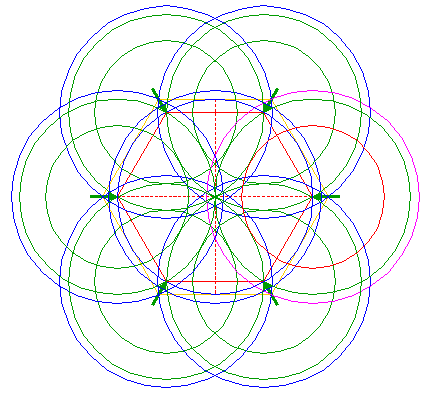

| Copy circle 7 five times, to the centers of the remaining circles 3. |
| 9. |

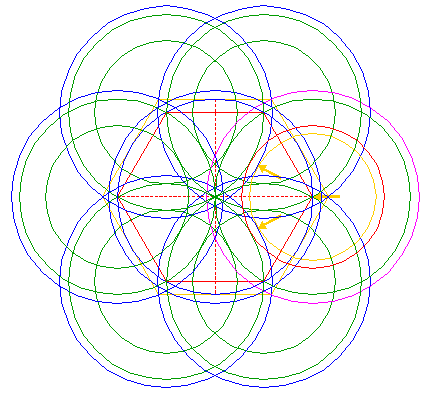

| Construct a circle concentric to the rightmost circle 3, tangent to the upper left and lower left circles 6, at the near sides. |
| 10. |

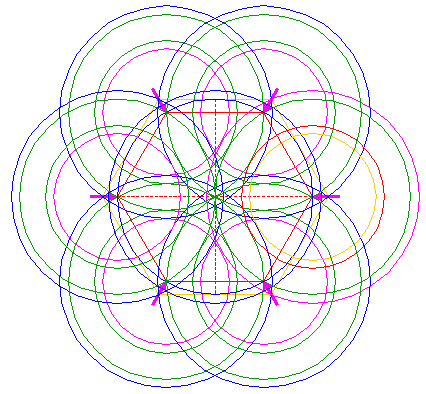

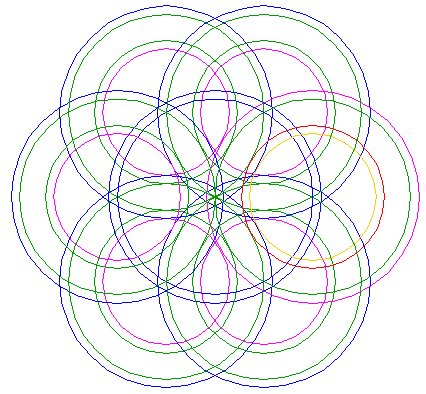

| Copy circle 9 five times, to the centers of the remaining circles 3. |
| 11. |
| Circles 1, 3, 5, 6, 7, 8, 9 and 10 form the constituent parts for the reconstruction. |
| 12. |

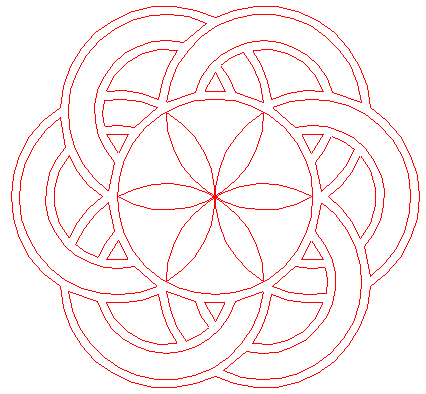

| Remove all parts not visible in the formation itself. |
| 13. |
| Giving all areas corresponding to standing... |
| 14. |

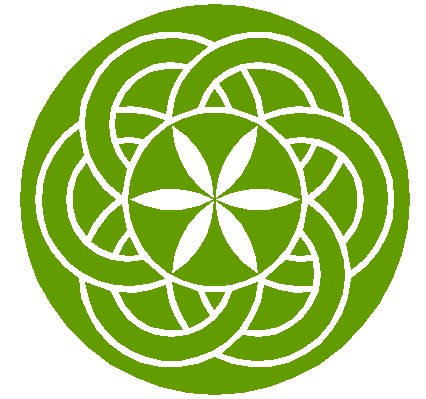

| ...or to flattened crop a green colour, finishes the reconstruction of the 2003 Tegdown Hill formation. |
| 15. |

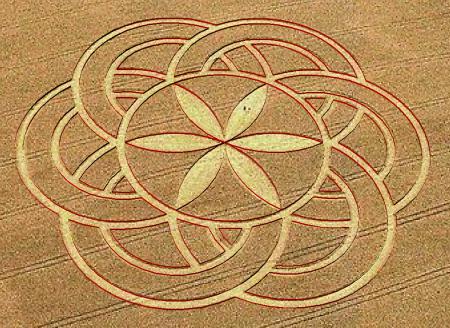

| The final result, matched with the aerial image. |
|
Copyright © 2003,
Zef Damen, The Netherlands
|
