2002 Silbury Hill formation
|
Reconstruction of the 2002 Silbury Hill formation | ||
| 1. |

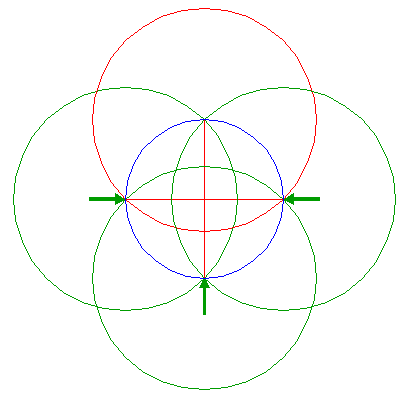

| Draw a circle. Draw the horizontal and vertical centerlines. |
| 2. |
| Construct a circle centered at the upper endpoint of the vertical centerline, passing through the right (and left) endpoint of the horizontal centerline. |
| 3. |
| Repeat this three times for the other endpoints of both centerlines. |
| 4. |

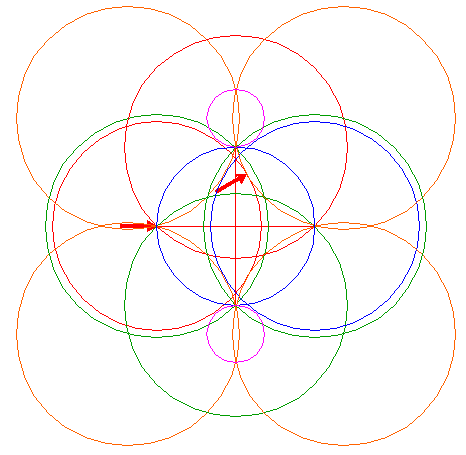

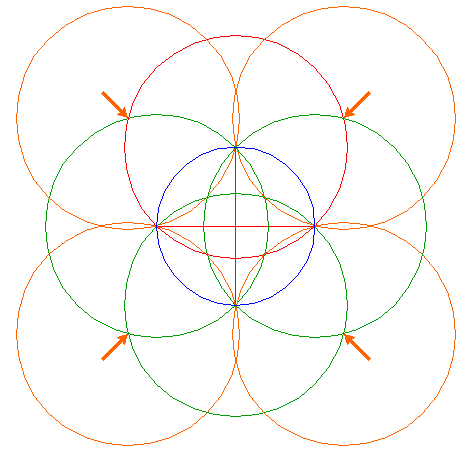

| Copy circle 2 four times to the outer mutual intersections of circles 2 and 3. |
| 5. |

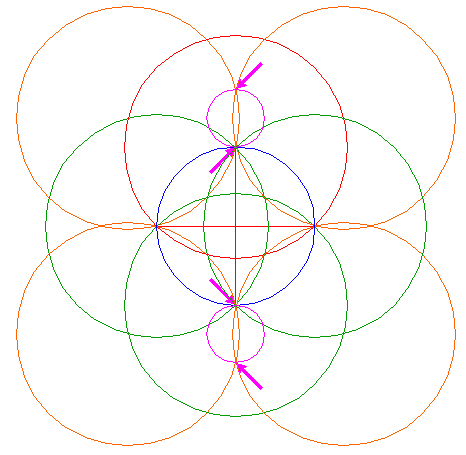

| Construct a circle with its centerline between both intersections of the two upper circles 4. Repeat this for the two lower circles 4. |
| 6. |

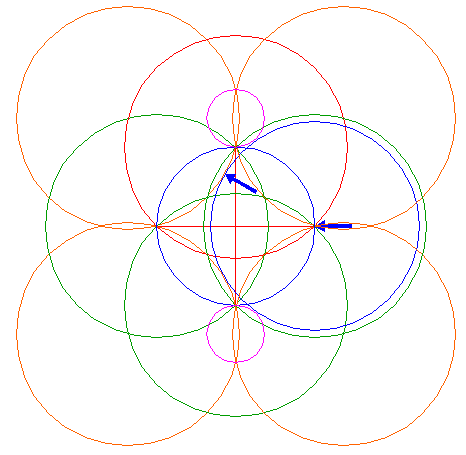

| Construct a circle concentric with the rightmost circle 3, tangent to upper left circle 4 at the near side. |
| 7. |
| Repeat this for the leftmost circle 3, tangent to the upper right circle 4. |
| 8. |

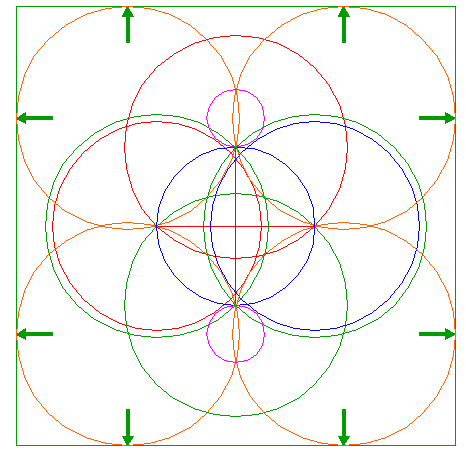

| Construct a square, tangent to and enclosing all circles 4. |
| 9. |
| Construct the circumscribed circle of square 8. |
| 10. |

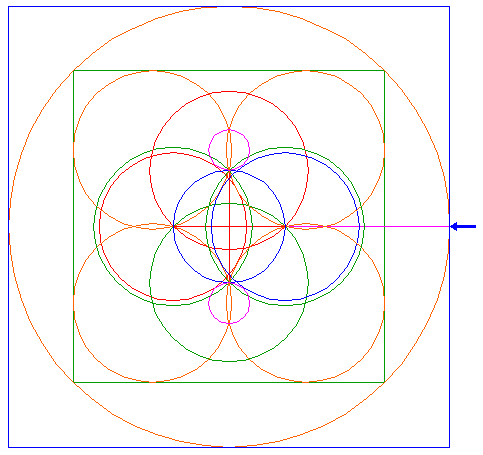

| Extend the horizontal centerline up to circle 9 to the right. |

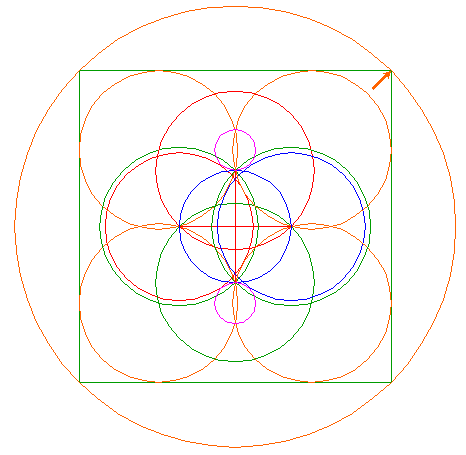

| 11. |

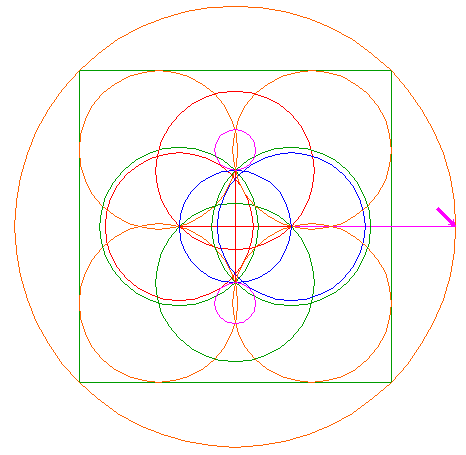

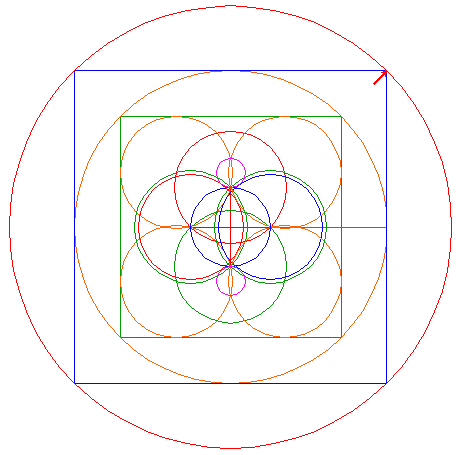

| Construct the circumscribed square of circle 9 with its sides parallel to those of square 8, as shown. |
| 12. |
| Construct the circumscribed circle of square 11. |
| 13. |

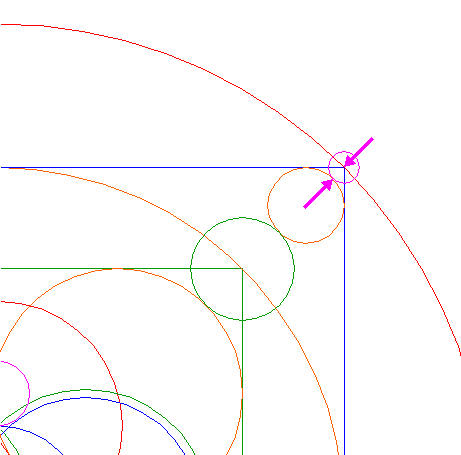

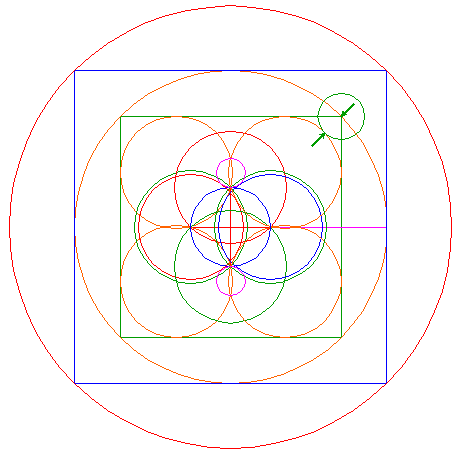

| Construct a circle centered at the upper right corner of square 8, tangent to the closest circle 4, at the near side. |
| 14. |
| Construct a circle, tangent to circle 13 at the upper right side, and tangent to both the right and upper sides of square 11. |
| 15. |

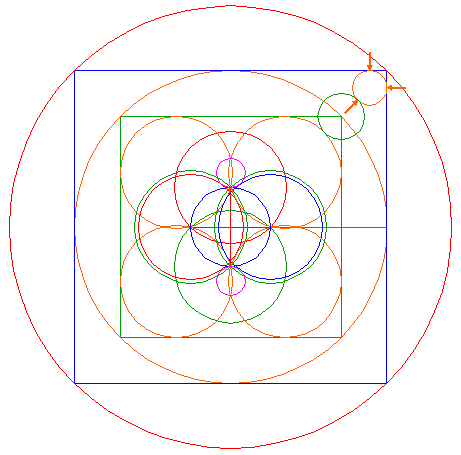

| Construct a circle centered at the upper right corner of square 11, tangent to circle 14, at the near side. |
| 16. |

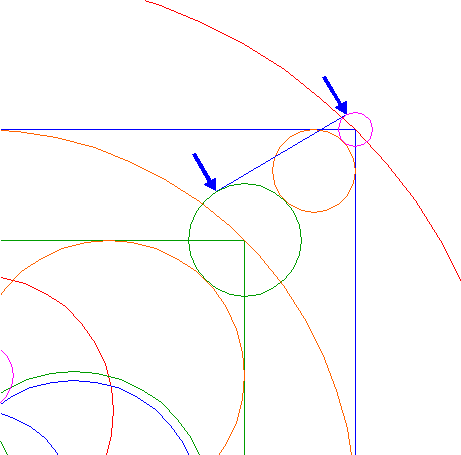

| Construct a line, tangent to circles 13 and 15 at their upper left sides. |
| 17. |

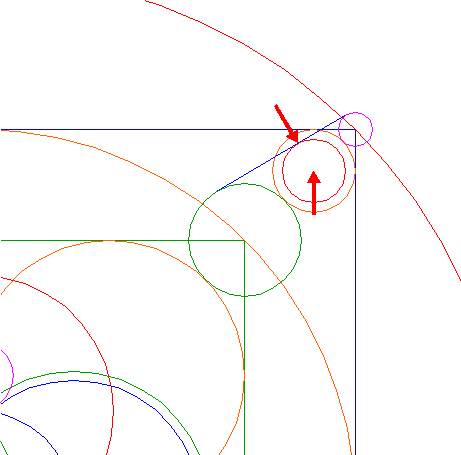

| Construct a circle concentric to circle 14, tangent to line 16. |

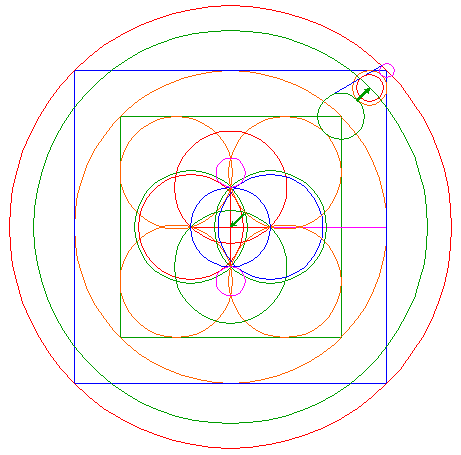

| 18. |
| Construct a circle concentric to circle 1, passing through the center of circle 17 (and 14). |

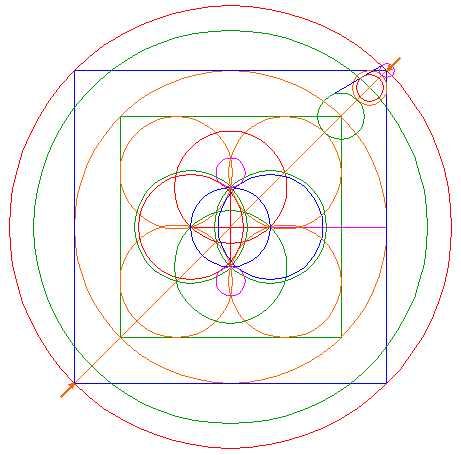

| 19. |
| Draw the connecting line between the upper right and the lower left corners of square 11. |
| 20. |

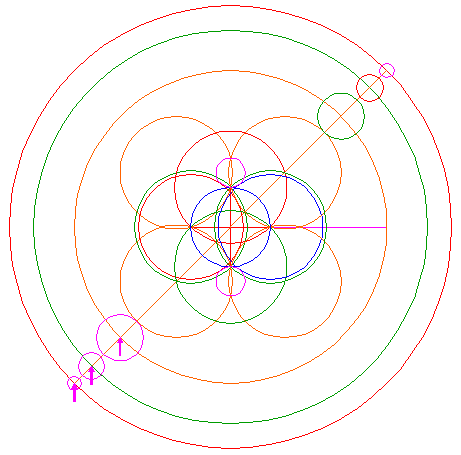

| Copy circles 13, 15 and 17 to the opposite intersections of line 19 and circles 9, 12 and 18 respectively. |

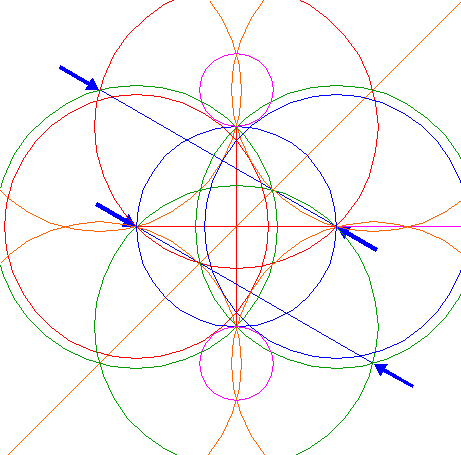

| 21. |
| Draw a line from the right endpoint of the horizontal centerline and the upper left intersection of circles 2 and 3. Repeat this for the left endpoint and the lower right intersection of circles 3. |
| 22. |
| Extend both lines 21 up to circle 12, the first to the upper left, the other to the lower right. |

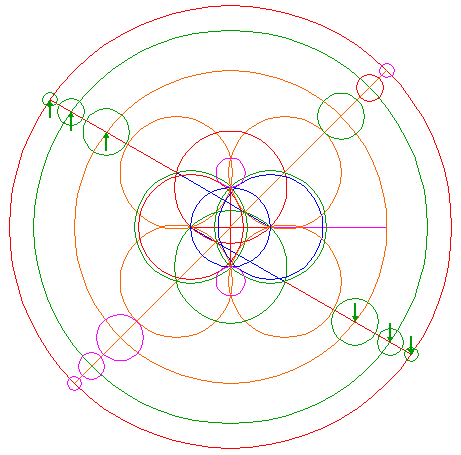

| 23. |
| Copy two sets of circles 13, 15 and 17 to the respective intersections of lines 22 and circles 9, 12 and 18. |

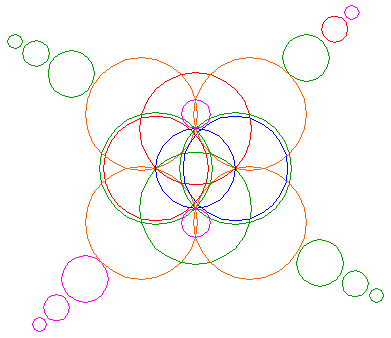

| 24. |

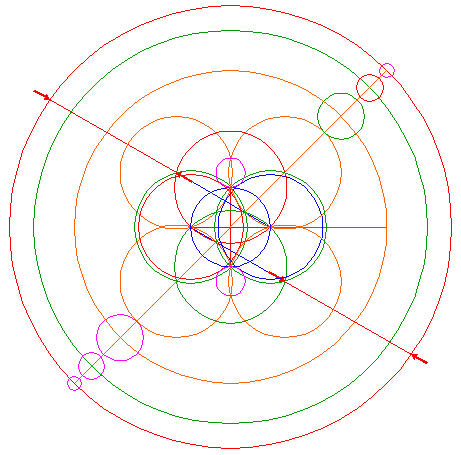

| Circles 1, 2, 3, 4, 5, 6, 7, 13, 15, 17, 20 and 23 together form the basis for the final reconstruction. |

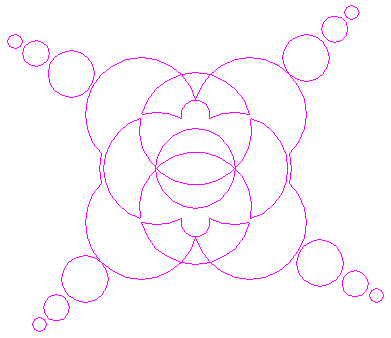

| 25. |
| Remove all parts of these circles not visible in the formation. |
| 26. |
| Making black all areas corresponding to flattened crop finishes the reconstruction of the 2002 Silbury Hill formation. |
| 27. |
| The final result, matched with the aerial image. |
